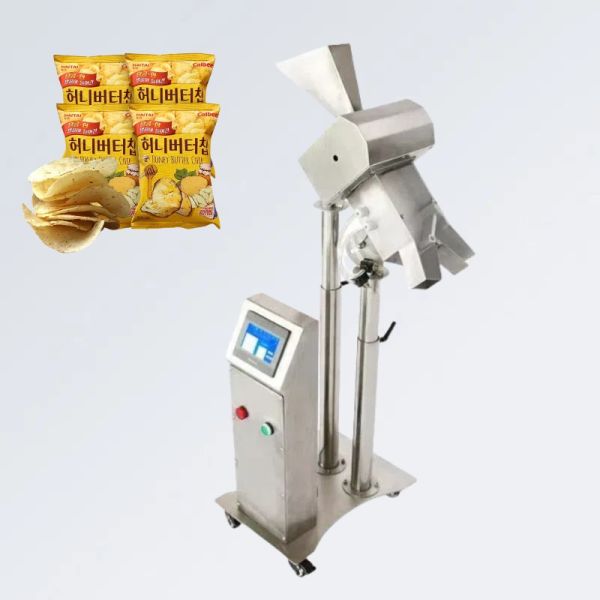

Fully Automatic Capsule Metal Detector Food Metal Detector Health Care Products Metal Separator Factory Direct Sales

Product Categories

Dongguan Changsheng Packaging Machinery Co., Ltd

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

Place of Origin : Guangdong, China

Brand Name : CS

MOQ : 1

Price : $4,500-5,000

Weight : 180 kg

Power : 150 kW

Voltage : 220 V

Model : CS-980

Channel width : 700 mm

Channel height : 100 mm

Iron sensitivity : ≥0.8 mm

Non-ferrous sensitivity : ≥1.2 mm

Stainless sensitivity : ≥2.0 mm

Alarm method : Automatic stop, buzzer

Material : 304 stainless steel

Dimensions : 1330×870×950 mm

Machine weight : 180 kg

Core components : PLC

Detection method : Metal detection

Contact Now

Product model	CS-980
Model type	Standard machine Non-standard machine (special specifications)
Detection channel width (mm)	700-customized non-standard
Detection channel height (mm)	100
Standard detection sensitivity	Iron ball diameter (Φmm) ≥0.8 Copper and aluminum and other non-ferrous metal diameter (Φmm) ≥1.2 304 stainless steel ball diameter (Φmm) ≥2.0
Alarm method	Automatically stop running when detecting metal foreign matter, buzzer alarm or rejection
Material of the whole machine	The whole frame is made of 304 stainless steel, in line with HACCP, GMP, FDA, CAS and other standards
Mechanical size (mm)	1330×870×950 (length×width×height)
Machine weight	about 180KG
Note	The above sensitivity parameters are the test results when the machine is empty and there is no environmental interference. The actual application will be slightly different due to the interference of the use environment and the composition of the object being detected!
